GL100 KV10

Product Description

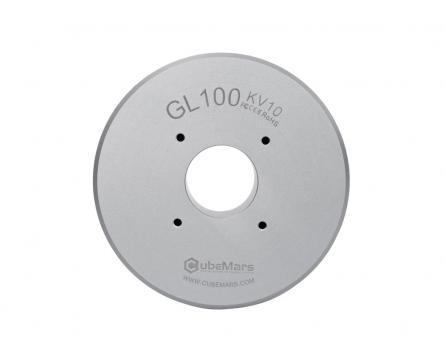

The CubeMars GL100 KV10 gimbal motor is a high-precision brushless motor from the CubeMars GL series, specifically designed for high-end gimbal systems, autonomous driving perception rotating modules, and radar scanning heads. Featuring a large hollow shaft structure, low cogging torque design, and a compact form factor, it delivers reliable performance with a weight of approximately 698 g. With an IP45 rating for dust and water resistance, this motor is ideal for applications requiring long-term, stable operation.

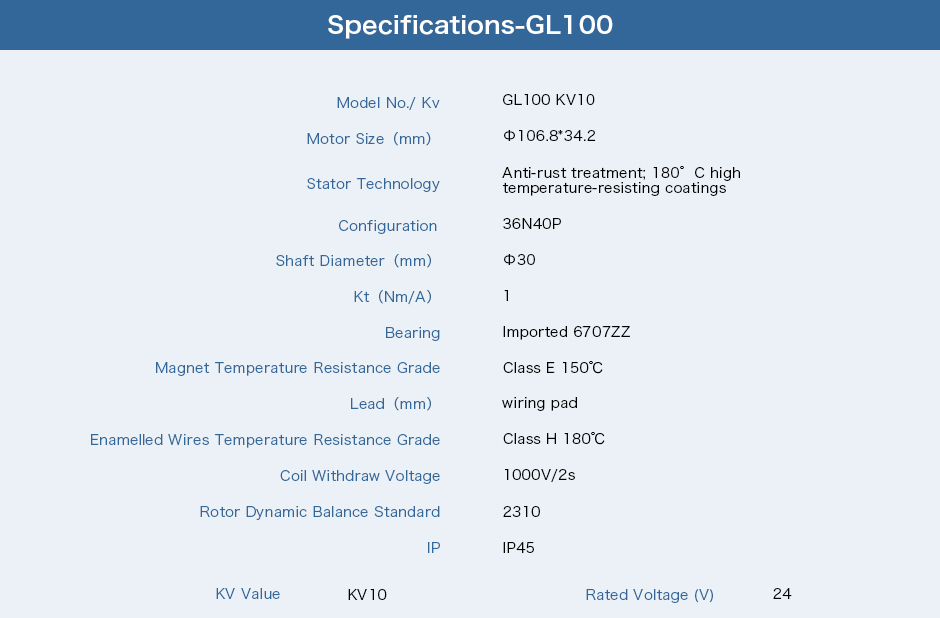

Core Specifications

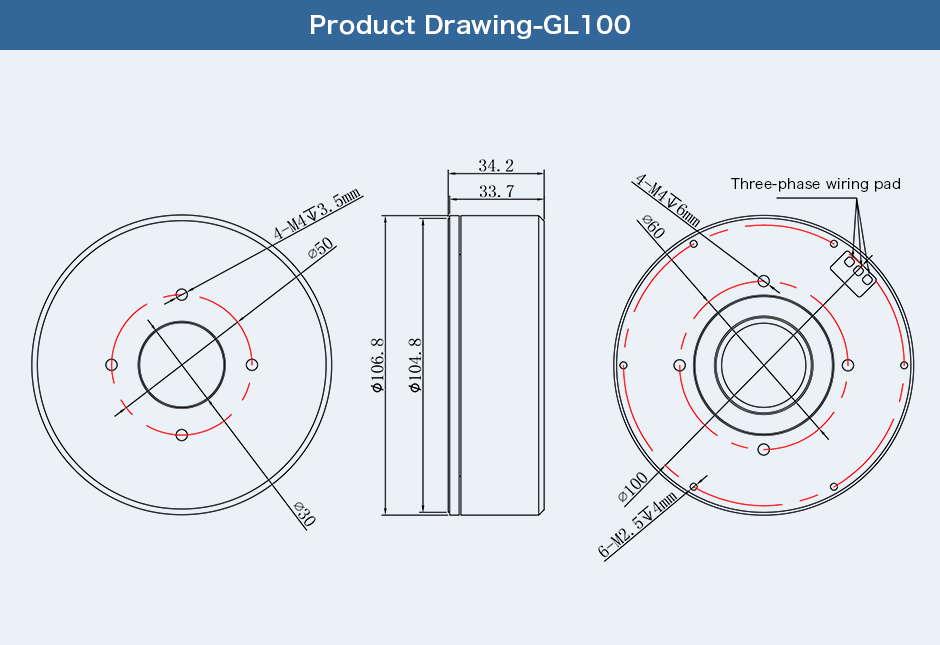

• Motor Dimensions: Ф106.8*34.2mm

• Through-hole Diameter: 30mm

• Motor Weight: 698g

• Peak Torque: 7.7Nm

• No-load Speed: 223rpm

Product Highlights

• Large Hollow Shaft Design: Facilitates routing of signal and power cables or integration with slip rings, making it ideal for complex rotating systems

• Low Cogging / Smooth Output: Specifically optimized for gimbal applications, delivering finer control and faster response

• High Torque Output: Rated torque of approximately 3 Nm and peak torque of 7.7 Nm, capable of driving heavy loads with precision

• Compact Yet Powerful: Weighs only ~698 g and measures Ø106.8 mm × 34.2 mm in size, offering high performance in space-constrained installations

• Reliable Operation: IP45-rated protection ensures durability in dusty environments and complex rotational setups

Packaging Contents

• GL100 KV10 Gimbal Motor x1

• Certificate of Conformance x1
