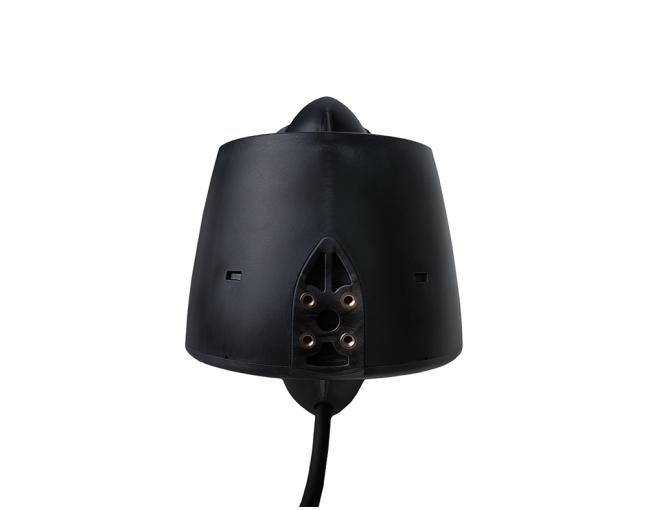

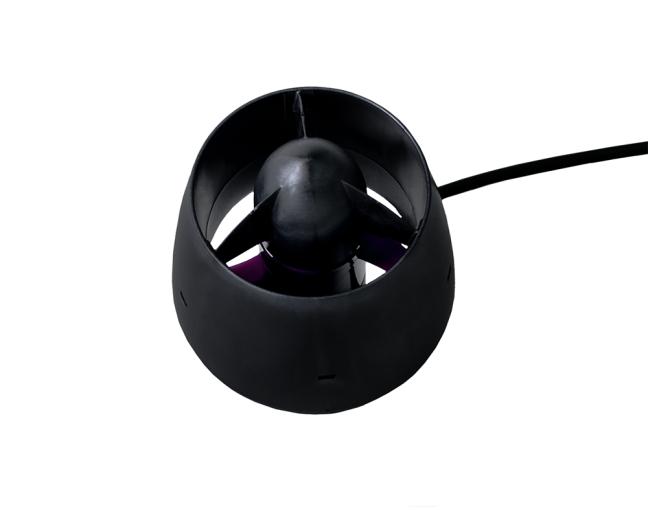

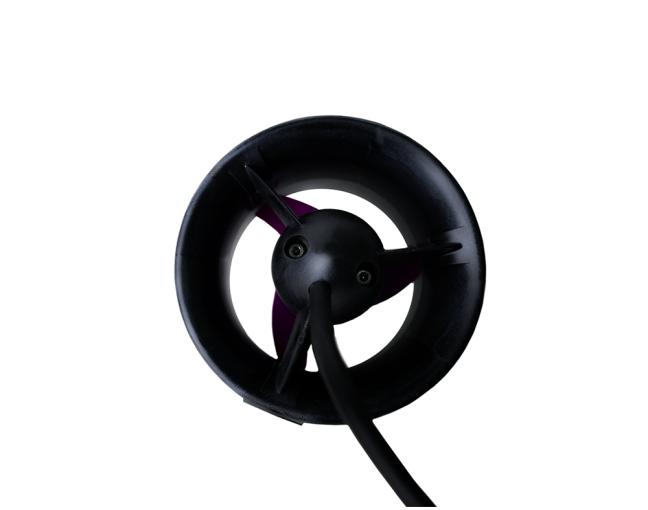

W30 Underwater Thruster

Product Description

The CubeMars W30 underwater thruster is a seawater-immersible propulsion system specifically engineered for harsh marine environments. Designed for high corrosion resistance, efficiency, and compactness, it features a magnet assembly protected by a specialized anti-corrosion coating and fully potted windings using encapsulation resin—enabling direct water cooling while maintaining stable performance.

All steel shafts and housing screws are made from high-grade stainless steel for superior resistance to saltwater corrosion. Unlike conventional bearings, the thruster employs imported self-lubricating bushings that activate upon water immersion, providing natural pressure resistance and enabling reliable operation at depths up to 200 meters.

The shroud is constructed from high-strength polycarbonate (PC) plastic, featuring an aerodynamically optimized streamline profile that maximizes thrust efficiency—delivering up to 7.7 kgf of forward pull.

This versatile thruster is suitable for a wide range of applications, including marine robots, autonomous/remote-operated vehicles (AUVs/ROVs), unmanned surface vessels (USVs), and electric surfboards.

Core Specifications

• Dimensions: Φ100 × 108 mm

• Forward Thrust: 6.7–7.7 kgf

• Reverse Thrust: 5.0–5.8 kgf

• Continuous Rated Power: 480 W

• Rated Current: 22 A

• Weight (in air): 420 g

• Weight (in water): 200 g

• Maximum Operating Depth: 200 m

Product Highlights

• Corrosion-Resistant Optimization: Magnets feature specialized protective coatings; shafts and fasteners use premium-grade stainless steel for enhanced durability in seawater

• Deep-Dive Capability: Validated for operation down to ~200 m—ideal for AUVs, ROVs, USVs, and other subsea platforms

• High Thrust Performance: Delivers 6.7–7.7 kgf forward thrust and 5.0–5.8 kgf reverse thrust for agile maneuverability

• High Power Density: 480 W continuous output, compatible with 4–6S Li-ion/LiPo battery systems; supplied as an integrated kit with motor, ESC, propellers, and shroud

• Lightweight Design: Weighs only ~420 g in air (~200 g in water), minimizing payload burden on underwater systems

Packaging Contents

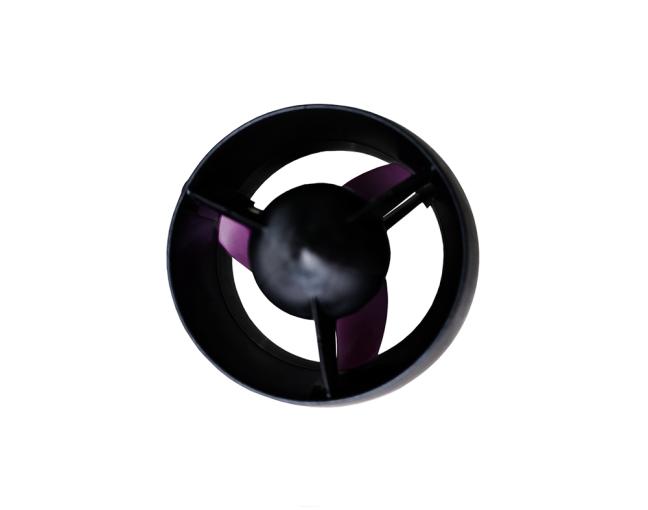

• W30 Complete Thruster Kit ×1 (includes: W30 motor ×1, counter-rotating propeller pair ×1, ESC ×1, shroud ×1)

• Certificate of Conformance ×1

Related Accessories

• W30 Underwater Thruster Motor

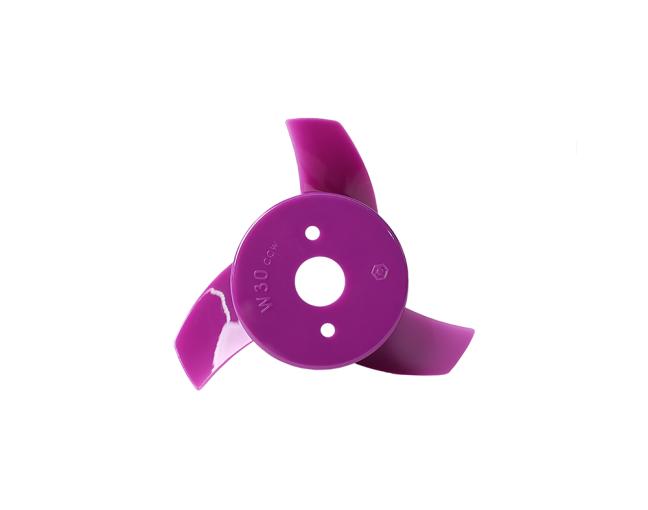

• W30 Counter-Rotating Propeller Pair

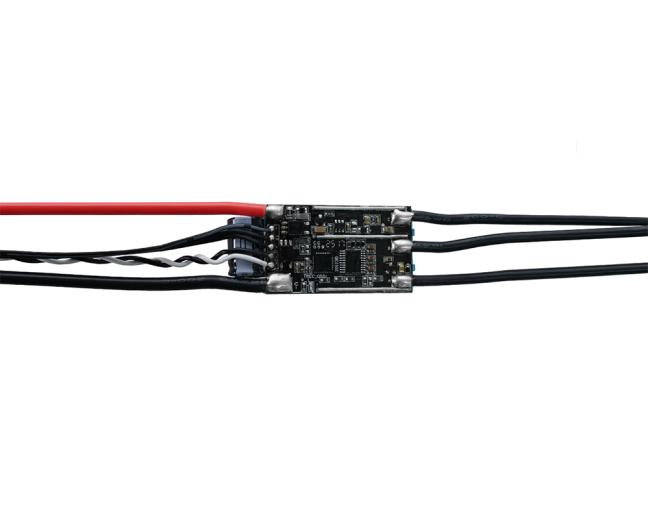

• W30 ESC

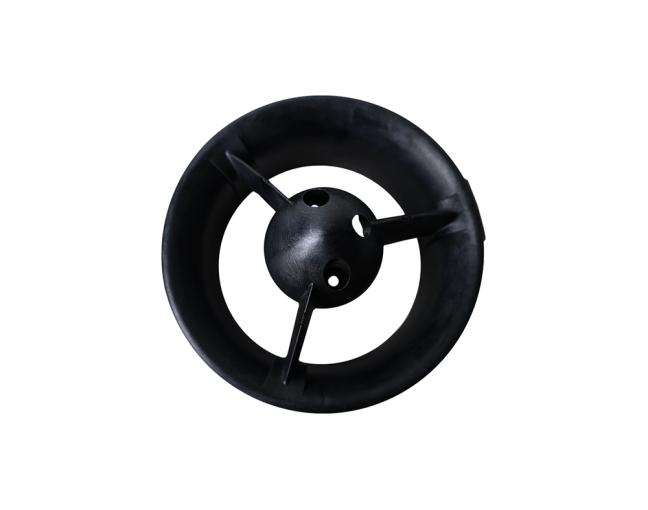

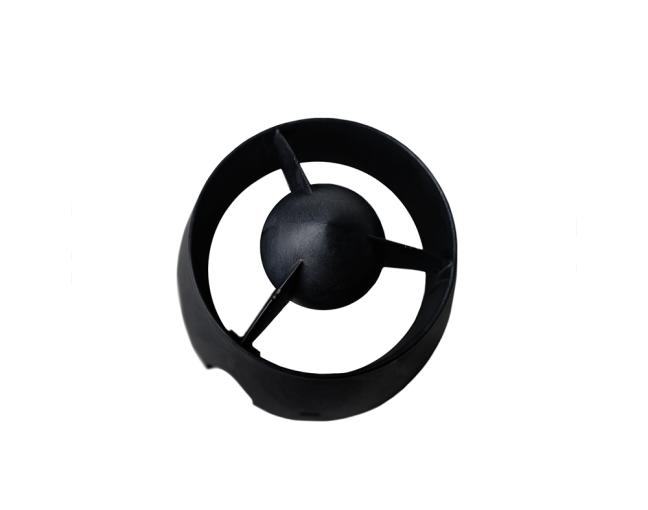

• W30 Shroud
