GL60 KV25

Product Description

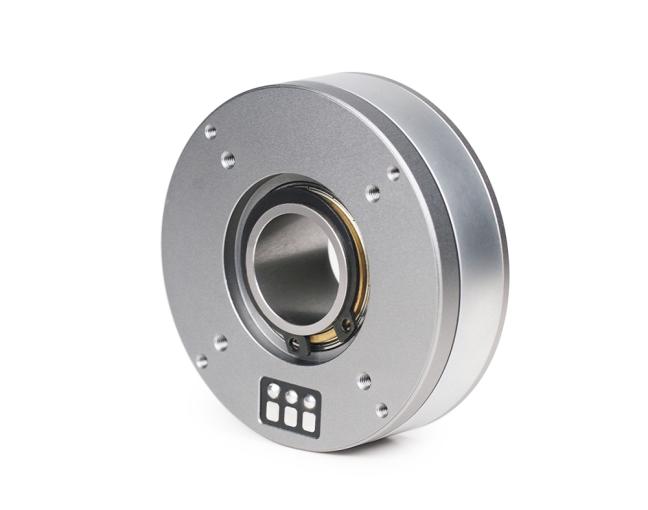

The CubeMars GL60 KV25 gimbal motor is a brushless motor from the CubeMars GL series, designed specifically for gimbals, radar scanning heads, and autonomous driving platforms. Featuring a large hollow shaft structure, it supports internal signal wiring or slip ring integration. With low cogging torque, low no-load noise, and high torque density, this motor is compatible with 24V systems. Optimized for low-speed, high-precision applications, it is ideal for lightweight gimbals, rotary modules, and vehicle-mounted sensing units.

Core Specifications

• Motor Dimensions: Ф69*22.3mm

• Through-hole Diameter: 20mm

• Motor Weight: 230g

• Peak Torque: 1.75Nm

• No-load Speed: 516rpm

Product Highlights

• Large Hollow Shaft Design: The spacious center bore allows signal and power cables to pass through or enables slip ring integration, simplifying system layout and enabling continuous rotation

• Low Cogging / Smooth Output: Optimized electromagnetic structure minimizes torque ripple at low speeds, ensuring smoother and more stable control performance

• Robust Environmental Tolerance: IP45-rated for dust and water resistance, suitable for outdoor or industrial environments

• Versatile Compatibility: Suitable not only for camera gimbals but also for vehicle perception systems and other rotary mechanisms requiring high torque at low speeds

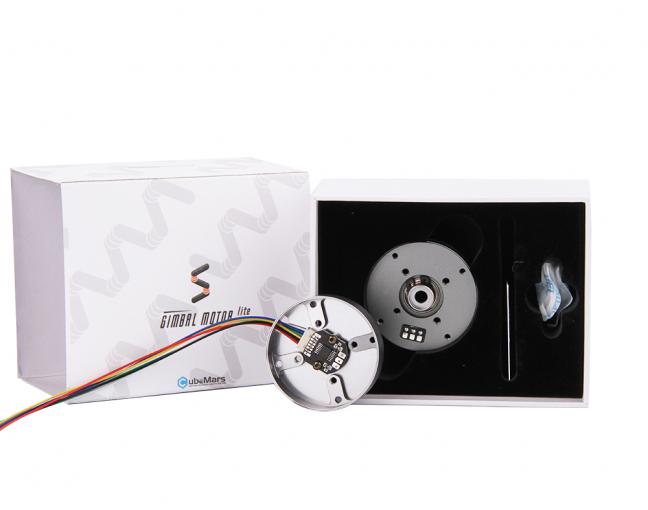

Packaging Contents

• GL60 KV25 Gimbal Motor x1

• Certificate of Conformance x1
