The RI-PH potting series inner-rotor frameless motors have achieved a key breakthrough in structural design: on the premise of not affecting magnetic flux density, the core yoke is optimized for thinning. Compared with the old RI series products, the thinning range of the yoke can be up to more than 30%, which better meets the compact installation needs of various mainstream embedded devices and collaborative robots.
The motor adopts a potting process, which significantly improves heat dissipation performance: it can maintain excellent performance when the ambient temperature does not exceed 85℃; even when the winding temperature reaches as high as 150℃, it can still output stably continuously, ensuring reliable operation under extreme conditions.
In addition, the electromagnetic part of the motor is well-designed, with both torque and power density increased by 25%. Moreover, it can maintain efficient and stable power output in multiple torque ranges, meeting the application needs of different load scenarios. At the same time, the motor integrates a Hall sensor and a temperature sensor, which can realize precise control of angle and temperature during operation. This not only improves the flexibility of customers' actual operations, but also fully ensures the long-term good operation of the motor.
Compact Design, Powerful Performance
RI-PH SERIES FRAMELESS
INRUNNER TORQUE MOTOR
LIGHTWEIGHT DESIGN
HIGHLY COMPATIBLE
The core yoke is over 30% thinner than the previous RI series maintaining magnetic density
and fitting compact installations in embedded devices and collaboorative robots
HIGH-TEMPERATURE RESISTANT
CONTINUOUSLY EFFICIENT
Using potting technoloogy,cooling performance is significantly enhanced It performs
excellently below 115°C and can continuously maintain performance even at winding
temperature exceeding 150°C
Torque/N·m
Temperature/°C
UPERIOR DESIGN
ENHANCED PERFORMANCE
The electroomagnetic design is meticulously crated
resulting in a 25% increase in torque and power density
STABLE OUTPUT
LONG-LASTING EFFICIENCY

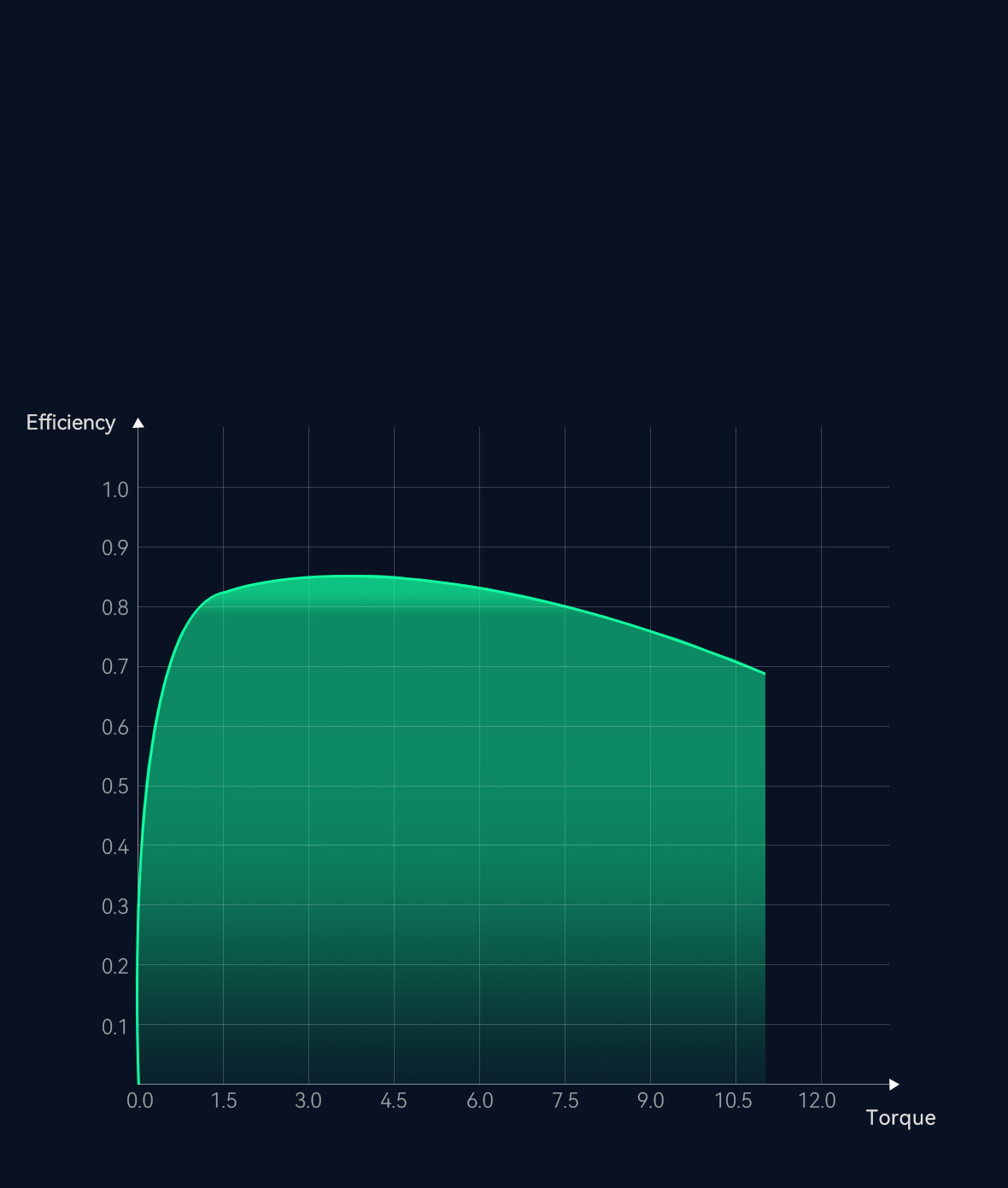

Proovides stable and efficient power output across multiple torque ranges
Efficiency
INTEGRATED SENSORS
FLEXIBLE CONTROL
Integrated with Hall sensors and temperature sensors for precise control of
angle and temperature,enhancing flexibility and performance
