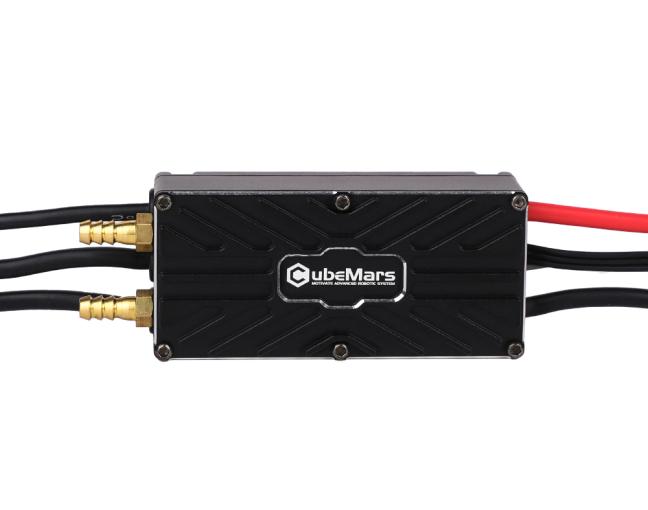

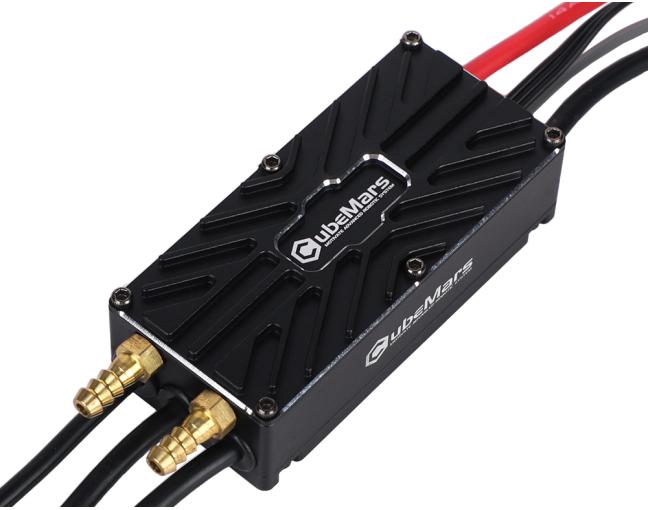

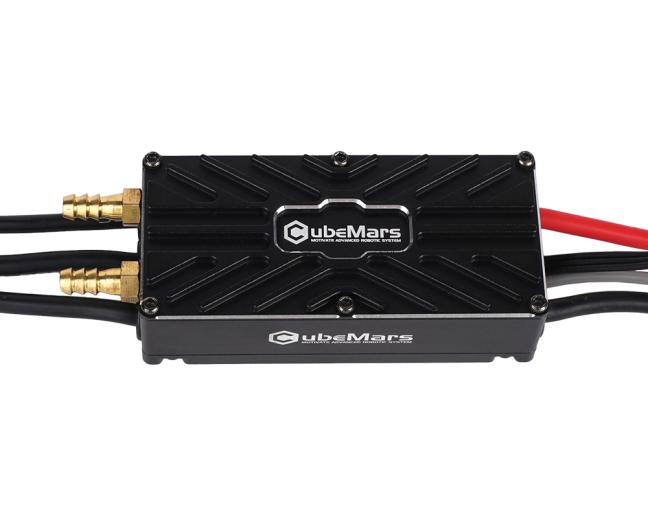

Name: TW-40A-12S (2pcs/set) Underwater thruster ESC
Brand: CubeMars
SKU: ADZ09010004
Price: 179.99 USD
Availability: InStock

Product Description

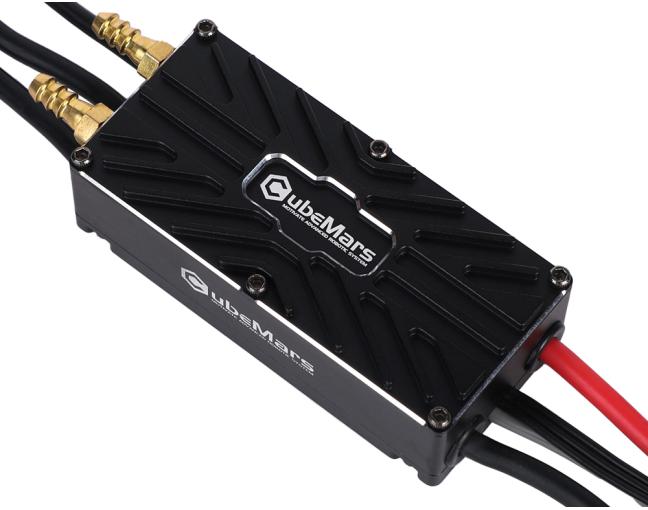

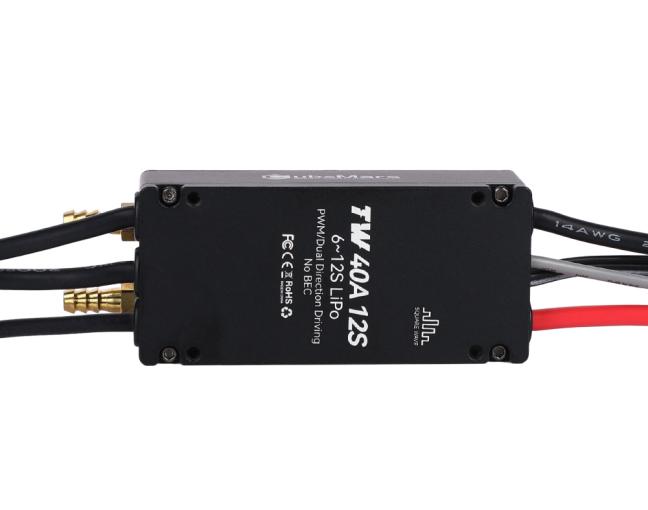

TW-40A-12S underwater electronic speed controller (ESC) is a high-performance solution custom-designed for CubeMars’ SW and DW series underwater thrusters.

This model supports 6–12S Li-ion/LiPo battery input (approximately 22.2–44.4 V) and features a fully sealed IP67-rated waterproof enclosure. It integrates CubeMars’ proprietary startup and direction-switching algorithm, ensuring smooth motor starts and seamless forward/reverse transitions. Additionally, it includes an intelligent monitoring system that continuously tracks current, voltage, motor stall, and throttle signal loss—significantly reducing the failure rate of the propulsion system.

Each standard kit includes two ESCs, enabling simultaneous control of both CW and CCW motors in a single underwater thruster system.

Core Specifications

Product Highlights

Packaging Contents

一 IP67 WATERPROOF RATING 一

TW ELECTRONIC
SPEED CONTROLLER

Specifically designed for the SW/DW series underwater thrusters, the TW ESC features high-efficiency square wave control technology, delivering powerful thrust and rapid response to easily adapt to complex underwater flow conditions.

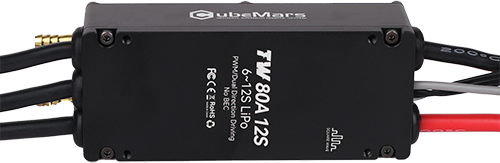

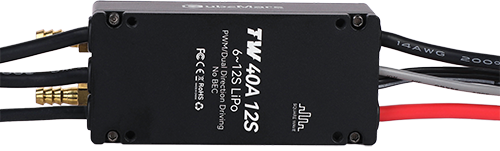

TW40ATW80A

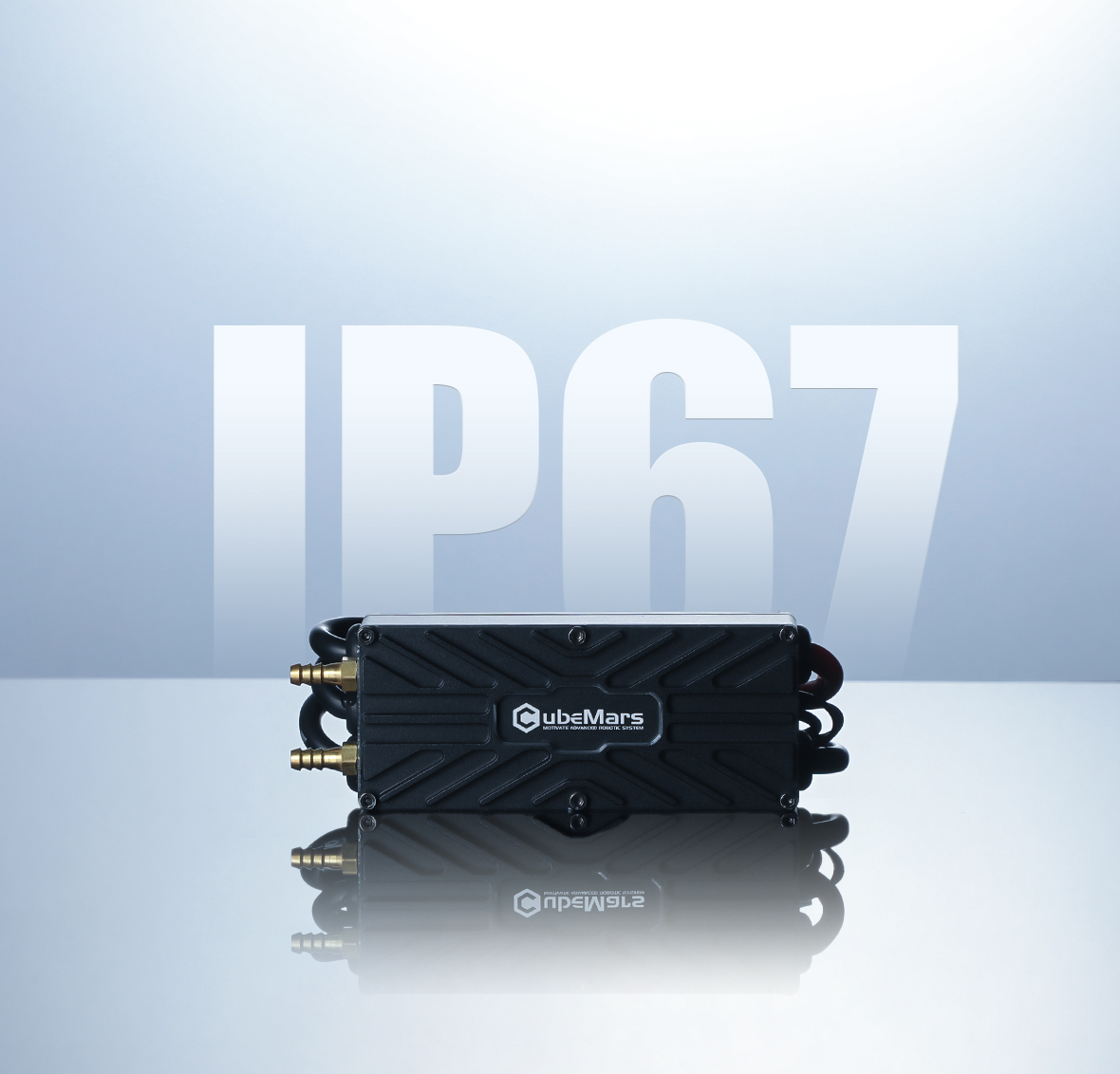

IP67 WATERPROOF RATE

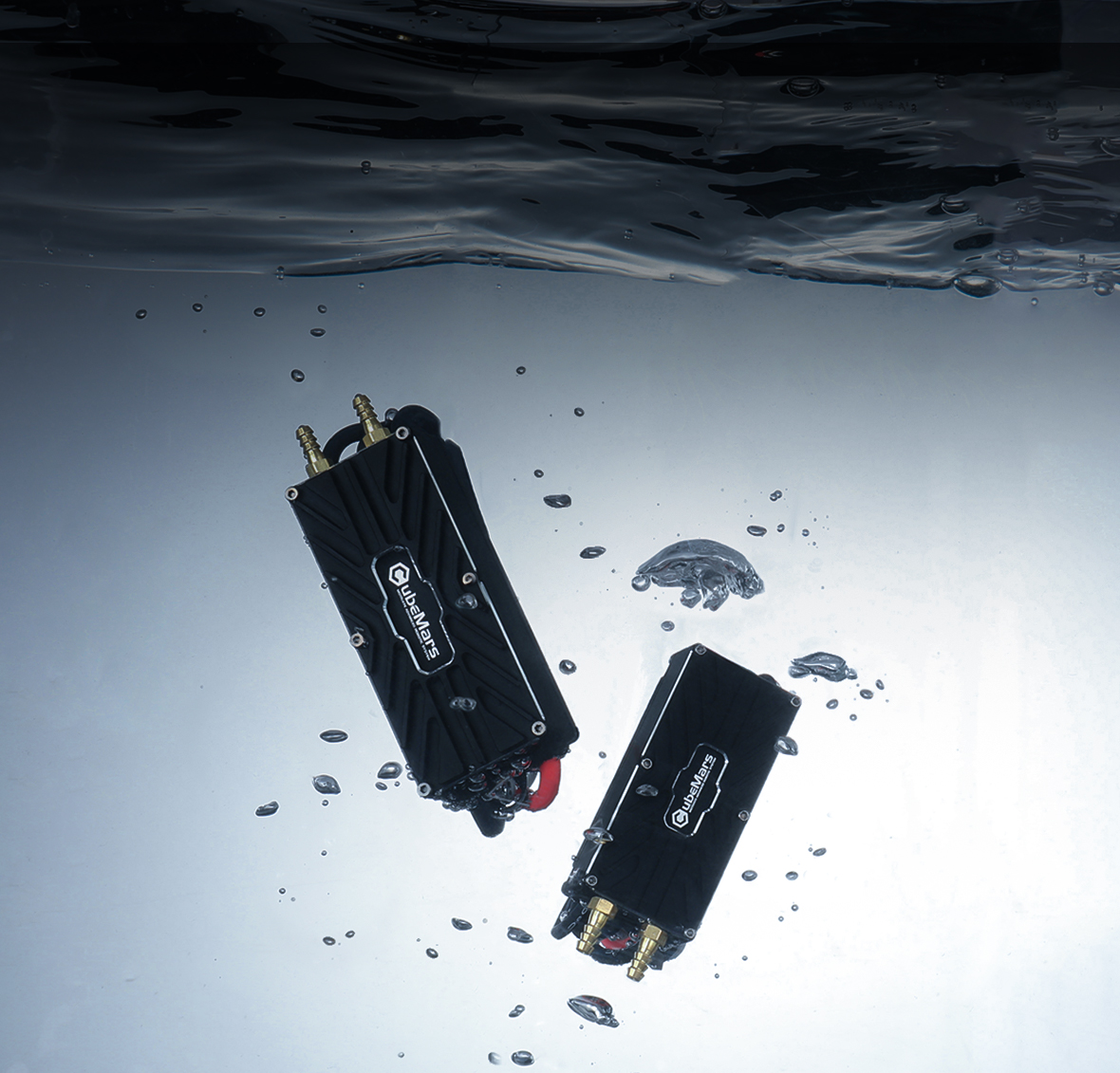

Withstands deep-sea high pressure and seawater corrosion, ensuring long-lasting and stable operation of the equipment in deep-water environments. With a fully sealed pressure-resistant structure.

PROPRIETARY SMART
SWITCHING ALGORITHM

Seamless forward/reverse transitions significantly enhance control precision and smoothness. Make sure smooth and stable motor start.

SMART MOTOR STATUS MONITORING

Accurately protects against abnormal signals such as overcurrent, overvoltage, stall, and throttle loss, effectively reducing failure rates and extending service life.

BASIC/PERFORMANCE SPECIFICATIONS

Product Model

TW-40A-12S

TW-80A-12S

Applicable models

SW7 / SW12 / DW10 / DW15

SW17 / DW20 / DW25

Size

78*30*19.9mm

83*35*22.8mm

Single unit weight

90.33g

149.33g

Package dimensions (includes dual ESCs)

140*137*77mm

Wiring harness description

Power cable (input): Red (positive), Black (negative)
Three-phase cable (output): 3 × Black
Signal cable ×1
Serial cable ×1

Input(V)

6-12S

Throttle range (with throttle midpoint at 1500 μs)

1000us-2000us

Bidirectional motor rotation

1000us-1500us Forward/ 1500us-2000us Reverse

Communication mode

Serial
