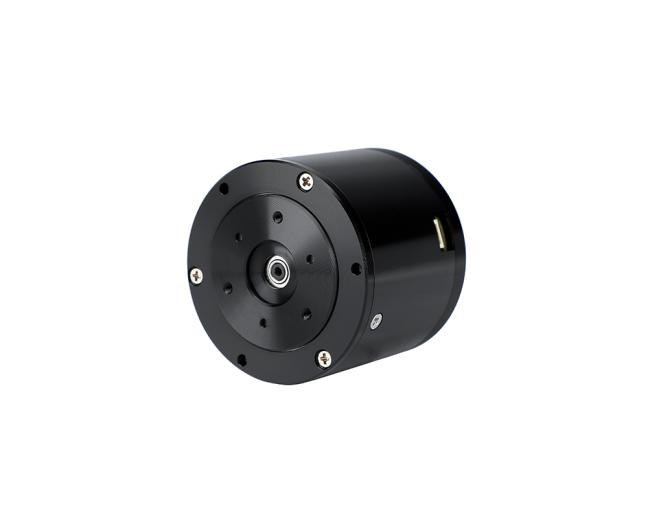

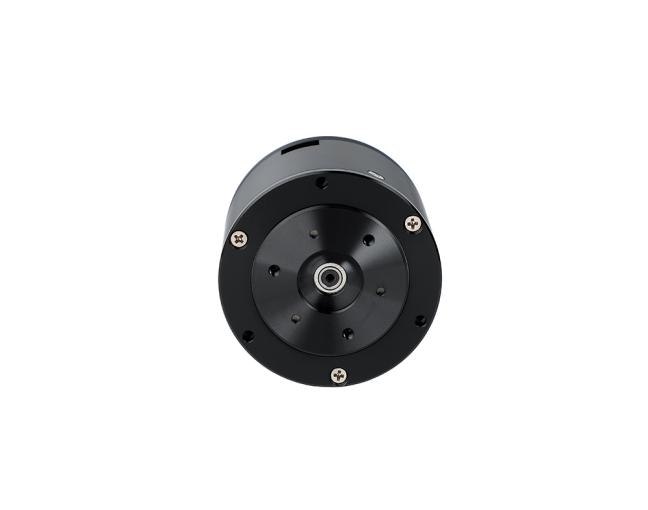

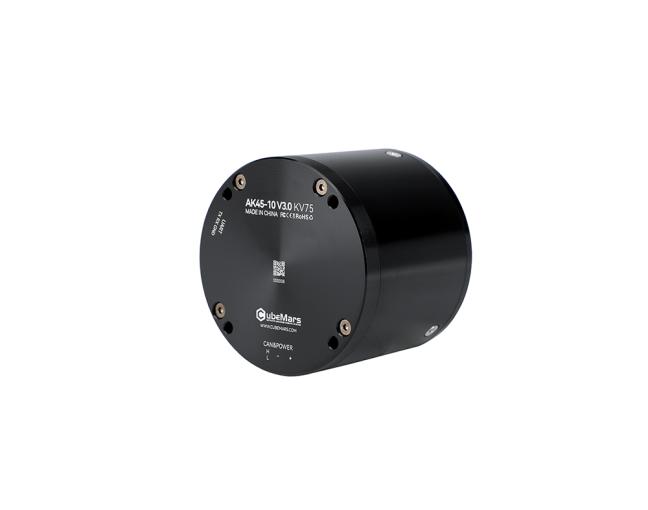

AK45-10 V3.0 KV75

Available points：0 Points ▏ Points reward：155 Points

• Compact actuator module with reduced footprint
• Lightweight design with high torque output
• Supports both SERVO and MIT control modes
• Ideal for humanoid robot joints
• Dual-encoder design ensures position retention after power loss

Model：

155.90

AK45-10 V3.0 KV75

Add to cart Buy now

Related Accessories

Driver board
RUBIK LINK V3.0
Cables

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).
Customization Inquiry
Payment Method :

Product Description

CubeMars AK45-10 V3.0 robotic actuator integrates a brushless DC motor, planetary gearbox, and motor driver into a highly compact all-in-one module for easy installation and system integration.

The unit features a 10:1 planetary gear reduction, delivering a balanced combination of torque output and dynamic response. It supports both SERVO and MIT hybrid control modes, with adaptive PID parameter identification for improved tuning performance. Built-in protection mechanisms including over-current, over-voltage/under-voltage, and over-temperature safeguards, ensure stable and reliable operation in demanding environments.

The design adopts an innovative dual-encoder architecture, simplifying mechanical structure while improving assembly efficiency and enhancing noise immunity for stable position sensing. Single-turn absolute position is retained even after power loss, enabling instant and accurate back on startup without the need for homing.

Core Data

Motor dimensions: Ø53*45.2mm
Motor weight: 262g
Peak torque: 7N · m
No-load speed: 180rpm

Product Highlights

Integrated Design: motor, gearbox, and driver are combined into a single all-in-one unit, reducing installation space and simplifying wiring.
Lightweight and Efficient: the full unit weighs only 262 g, delivering up to 7 N · m peak torque with a high torque density of 26.7 N·m/kg.
Precision Control: supports both SERVO and MIT control modes for flexible system integration.
Plug-and-Play: integrated wiring harness design reduces wiring errors and improves assembly efficiency.
Multiple Protection: built-in over-current, over-voltage/under-voltage, and over-temperature protection to enhance system reliability.
Dual-encoder Architecture: improved noise immunity ensures stable position sensing, with single-turn absolute position retained even after power loss.

Packing List

AK45-10 V3.0 actuator module (standard package includes driver board) ×1
Power & CAN cable ×1
Serial cable ×1
Certification ×1

Related Accessories

R-Link V3.0
MINI V3.0 driver board
V3.0 cable package

Dual encoders | Light & efficient

Compact, powerful

AK40-10 V3.0丨AK45-10 V3.0丨
AK45-36 V3.0

Powerful performance,
three-in-one

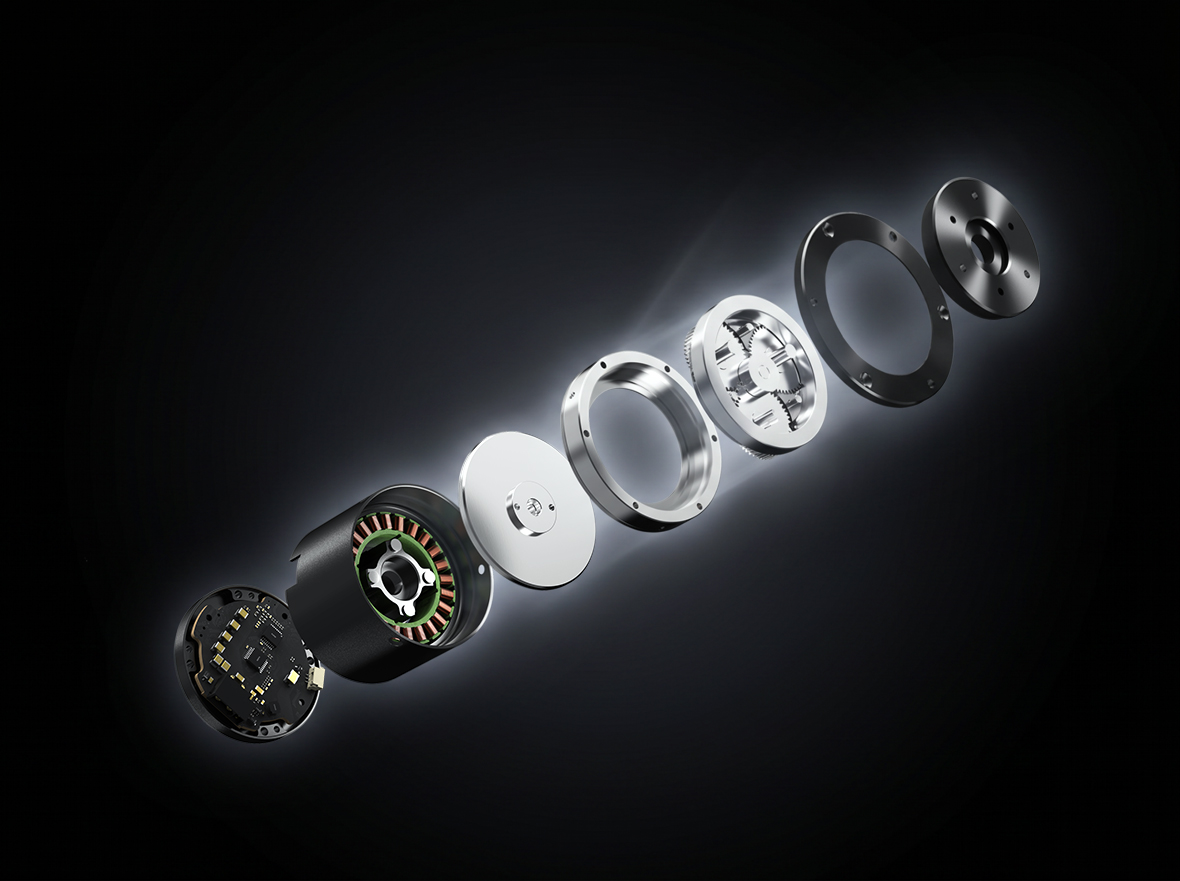

Combining the motor, planetary gearbox, and driver into one unit. Highly integrated, saving more installation space.

Highly integrated
lightweight design

Comining efficiency and power

262g

Weight

7N·m

Peak torque

26.7N·m/kg

Maximum torque density

Innovative dual encoder precise memory

Features a new dual-encoder design with integrated input-side sensing. Strong anti-interference ensures stable and accurate position detection.

Driver upgrade operation easy

One-click parameter recognition and easy setup for servo mode and MIT mode
A user-friendly interface provides clearer and simpler status monitoring.

One-click startServo modeMIT Mode

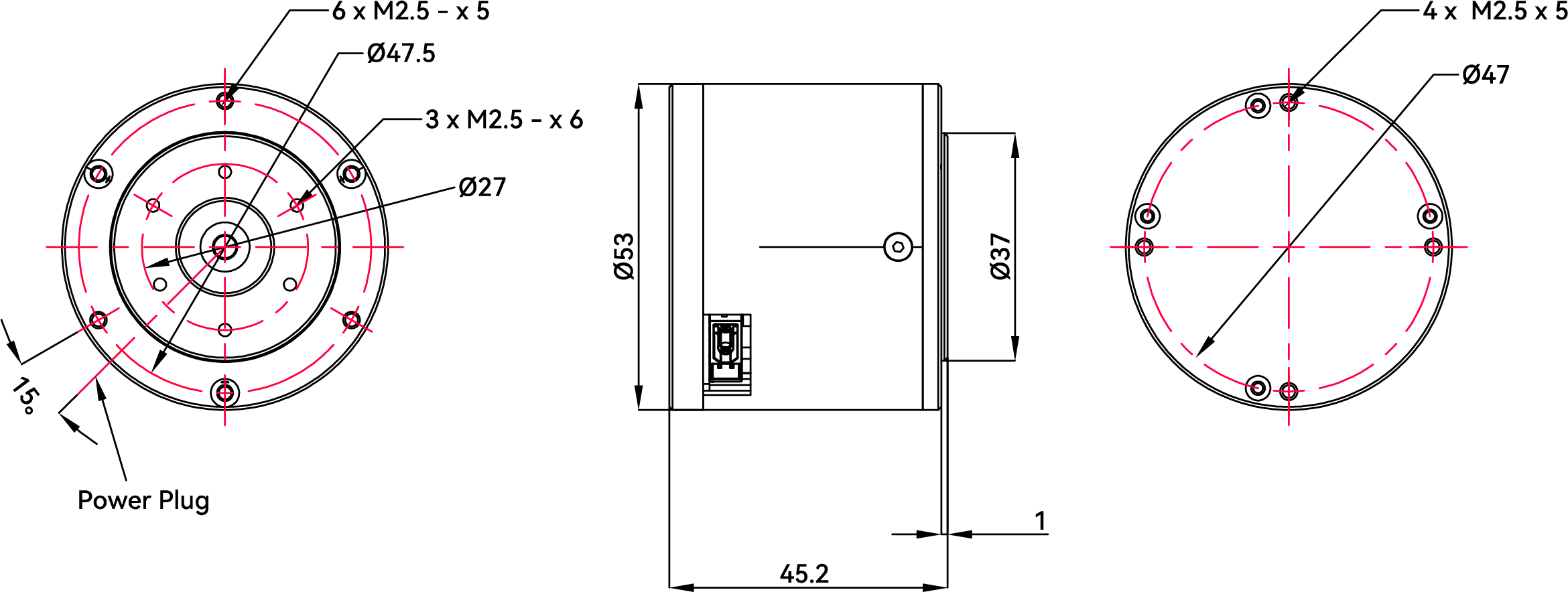

Technical Drawing


Specification

Size mm	φ53*45.2	Number of Slots	24
Weight g	262	Insulation Class	C
Reduction Ratio	10:1	Dielectric Strength	500V 5mA/2s
Communication Method	CAN	Insulation Resistance	500V 10MΩ
Operating Ambient Temperature ℃	-20~50	Inner Loop Encoder Type	Magnetic Encoder MT6835
UART Interface	A1257WR-S-3P	Inner Loop Encoder Resolution	16bit
CAN & Power Interface	XT30PW (2+2) -M	Outer Loop Encoder Type	Magnetic Encoder MT6835
Temperature Sensor	NTC MF51B 103F3950	Outer Loop Encoder Resolution	16bit
Pole Pairs	14	Number of Encoders	2

Electrical Specifications
Maximum Continuous Power W	39	Noise Level dB (65 cm Distance from Motor)	50
Rated Power V	24	Backdrivable Torque N·m	0.1
Rated Torque N·m	2.5	Backlash arcmin	18
Peak Torque N·m	7	Rotor Inertia g·cm²	157.33
Rated Speed RPM	120	Motor Constant N·m/√W	0.0858
No-Load Speed RPM	180	Speed Constant RPM/V	75
Rated Current A	1.9	Torque Constant N·m/A	0.127
Peak Current A	5	Back-EMF Constant V/kRPM	13.33
Maximum Torque Density N·m/kg	26.9	Phase Resistance mΩ	2200
Basic Dynamic Load Rating CN	2810	Phase Inductance uH	1330
Basic Static Load Rating C₀N	2760

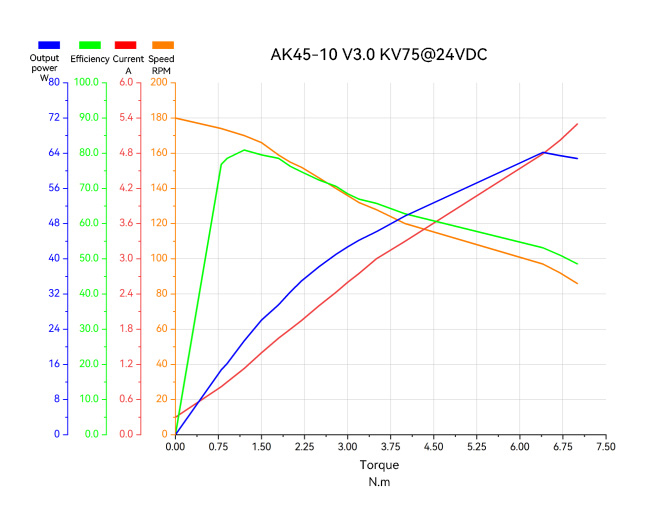

Analysis Chart

Temperature Rise Curve

Motor Model AK45-10 V3.0 KV75

Torque2 N·m Speed180 rpm

Motor Model AK45-10 V3.0 KV75

Torque2.5 N·m Speed150 rpm

Motor Model AK45-10 V3.0 KV75

Torque3 N·m Speed120 rpm

Packing List

Size of Packing Box

AK45-10 V3.0

Cable / Accessories

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to info@cubemars.com in time.

Product Comparison

category	Model	Rated Voltage (V)	Rated Power (W)	Rated Torque (Nm)	Rated Current (A)	Rated Speed (RPM)	Peak Torque (Nm)	Peak Current (A)	No-load Speed (RPM)	Reduction Ratio	Weight (G)	Size (diameter *length) MM	Driver Board	Encoder	Operation
AK Series Robotic Actuator	AK10-9 V3.0 KV60	48	442	18	10.7	235	53	31.9	320	9:1	940	Ф98*61.7	Yes	Dual
AK Series Robotic Actuator	AK10-9 V2.0 KV60	24/48	430	18	10.6	109/228	48	29.8	160/320	9:1	960	Ф98*61.7	Yes	Dual
AK Series Robotic Actuator	AK80-9 V3.0 KV100	48	368	9	12	390	22	28	570	9:1	490	Ф98*38.5	Yes	Single
AK Series Robotic Actuator	AK80-8 KV60	48	230	10	6.9	243	25	21	360	8:1	570	Ф98*43.9	Yes	Dual
AK Series Robotic Actuator	AK45-36 V3.0 KV80	24	33.5	8	2	40	24	6.5	52	36:1	349	φ55*56.5	Yes	Dual
AK Series Robotic Actuator	AK45-10 V3.0 KV75	24	39	2.5	1.9	120	7	5	180	10:1	262	φ53*45.2	Yes	Dual
AK Series Robotic Actuator	AK40-10 V3.0 KV170	24	50	1.3	2.7	370	4.1	7.3	435	10:1	190	φ53*40.2	Yes	Dual
AK Series Robotic Actuator	AK80-6 KV100	48	340	6	9.7	603	12	20	800	6:1	485	Ф98*38.5	Yes	Single
AK Series Robotic Actuator	AK80-64 KV80	24/48	220	48	7	23/48	120	19	37/75	64:1	850	Ф98*61.9	Yes	Single
AK Series Robotic Actuator	AK70-10 KV100	24/48	230	8.3	7.2	148/310	24.8	23.2	240/480	10:1	521	Ф89*50.25	Yes	Single
AK Series Robotic Actuator	AK70-9 V3.0 KV60	48	231	8.5	6.25	260	29.2	23.8	320	9:1	540	Ф89*49	Yes	Dual
AKH Series Hollow Shaft Planetary Actuator	AKH70-48 V1.0 KV41	48	217	74	6	28	222	21	35	48:1	1396	φ90*81.5	Yes	Dual
AK Series Robotic Actuator	AK60-6 V3.0 KV80	24/48	74	3	3.8	233/490	9	10.3/11.2	320/640	6:1	380	Ф79*43	Yes	Single
AK Series Robotic Actuator	AK60-39 V3.0 KV80	48	176	24	4.5	70	72	17	98	39:1	750	Ф79*67	Yes	Dual
AK Series Robotic Actuator	AK60-6 V1.1 KV140	24	130	3	6.5	420	9	22.7	560	6:1	368	Ф79*39.5	Yes	Single
AK Series Robotic Actuator	AK60-6 V1.1 KV80	24	74	3	3.8	233	9	13.1	320	6:1	368	Ф79*39.5	Yes	Single
AK Series Robotic Actuator	AK45-36 KV80	24	33	8	2	40	24	6.5	52	36:1	340	φ55*54	Yes	Single
AK Series Robotic Actuator	AK45-10 KV75	24	39	2.5	2.1	150	7	5	180	10:1	260	Ф53*43	Yes	Single
AK Series Robotic Actuator	AK40-10 KV170	24	59	1.3	2.7	370	4.1	7.3	435	10:1	185	φ53*37	Yes	Single
AKE Series Quasi Direct Drive Motor	AKE90-8 KV35	48	700	55	21	120	170	72	210	8:1	1400	Ф107.5*43.5	No
AKE Series Quasi Direct Drive Motor	AKE80-8 KV30	48	188	12	4.8	150	30	12	195	8:1	570	Ф87*32	No
AKE Series Quasi Direct Drive Motor	AKE60-8 KV80	24	95	5	4.8	180	12.5	12	240	8:1	260	Ф69*25	No
AKA Series Robotic Actuator	AKA10-9 KV60	48	205	18	10.6	109	53	32	320	9:1	1060	∅100*70	Yes	Single
AKA Series Robotic Actuator	AKA60-6 KV80	24/48	62	3	4	200/400	9	11.2	320/640	6∶1	460	Ф80*51.2	Yes	Single
AKH Series Hollow Shaft Planetary Actuator	AKH70-16 V1.0 KV41	48	245	26	6.5	90	85	23	105	16:1	879	φ90*60.5	Yes	Dual
